mtr high pressure hydraulic test benches

What we offer?

Budenberg Middle East offers MTR Richter very high Pressure pneumatic and hydraulic Pressure Test Benches with pressure range up to 7000 bar.

The benches are available in both Manual Pressure generation as well as in automatic pressure generation.

TB Series

0 to 1000 bar, 0 to 2000 bar, 0 to 5000…..7000 bar

Medium  Air / water

Applications

The TB series is high pressure hydraulic Calibration bench for Calibration laboratory and production of Pressure Transducers, Pressure Gauges, Pressure Switches and other Pressure instruments.

Hi Precision Pressure Indicator TPMG2 is available as measurement standard, if ordered separately.

Specifications

  • Easy and smooth high pressure generation

  • 2 Gauge stand with quick connectors

  • High Precision measurement with MTR Digital Indicator Model TPMG (as option)

  • No Isolation valve required

  • Selectable priming pressure

  • Adjustable table height

  • Large 5 litre reservoir

  • Customized solution

  • 9/16-18 UNF Pressure Connections

  • 10 bar external air supply

  • Automatic Pressure Generation up to 7000 bar is available as option
  • Weight 85 kg

TB series HP Test Bench. Clicl to enlarge

Scope of supply

Bench with fitted hoses, 2 gauge standard, high pressure generator, and Temperature Indicator TPMG2 with pressure sensor(s), if ordered with traceable Calibration Certificate. UKAS / DAkkS accredited Calibration is provided if ordered and Certificate of Conformity.

Optional Accessories

MTR-Cal Software

Adaptor kit

UKAS / DAkkS accredited Calibration is provided on pressure standard, if ordered separately.

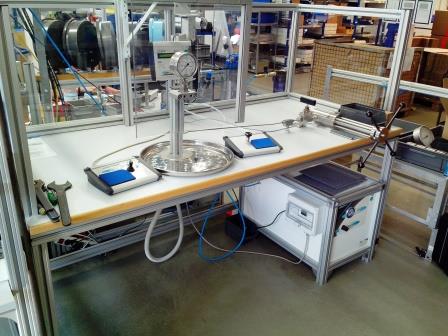

Automatic HP Test Bench, Click to enlarge

Pressure Accessories for Test Benches

Adaptor kit

This is a universal Pressure adaptor kit which can be used with Pressure Comparators, Controllers / Calibrators and Test Benches.

HG-104, Pressure Comparator

The unit is used to connect Pressure Indicator at one end while other end is connected to Pressure Controller / Generator.

SK-70 Compressor, 300 bar

This unit is used to generate up to 300 bar pressure for Pressure Comparators, Controllers and Test Benches.

PK-70 Compressor, 300 bar

This unit is used to generate up to 300 bar pressure for Pressure Comparators, Controllers and Test Benches.

MZ-2 Vacuum Pump

This unit is used to generate vacuum for Pressure Comparators, Controllers and Test Benches.

MTR-Cal Calibration Software

MTR-Cal calibration software is used with MTR Precision Indicators, Controllers and analog gauge display.
