eurotron (eiuk) temperature calibrators and probes

What we offer?

Eurotron PLB and PTB series portable liquid and dry-block temperature baths / calibrators which covers temperature range from -32°C to 1200°C.

These calibrators are ideally suited for calibration laboratories and field calibrations with Eurotron SRS Series Reference Probes.

Eurotron offers PLB and PTB series portable liquid and dry-block temperature baths / calibrators which covers temperature range from -32°C to 1200°C. These calibrators are ideally suited for calibration laboratories and field calibrations. PTB Calibrators enable the operator to check and re-calibrate thermocouples, resistance temperature detectors (RTD) and platinum resistance thermometers (PRT).

Reference probes / thermometers (SPRTs) are available as a master reference for use as working standards in Dry Blocks or Temperature Liquid baths.

PLB 150/250 Portable Liquid Temperature Baths

PLB series are portable liquid baths are stirred liquid baths suitable for calibrating temperature sensors of all size and diameters and shape without the need of specifically drilled block. They also provide much smaller calibration uncertainty than Dry Block.

PLB series can be converted into a Dry Block Temperature Calibrator and in conjunction with our range of multi-functional accessories.

They can be used as Infrared Calibrator source, Surface Temperatures Calibrators and Dry block calibrator.

The Large insert 60×170 mm make it possible to calibrate multiple sensors at the same time. PLB are available in 2 different models to cover a range from -32 to 250°C

Click to enlarge

PLB 150

from -32 to 140°C (from ambient)

PLB 250

from ambient to 250°C

The Salient features are:

  • High Accuracy Down to ±0.08°C (TC Version) using our external reference sensor and special calibration with built-in reference sensor input
  • Dual Channel Display (for TC Version) reads External Reference Sensor and unit under Test Simultaneously with high Stability ±0.01°C
  • Built-in Switch Test Calibration with automatic log of Open & Closed Temp. values
  • Large Calibration Volume 60 x 170mm
  • Unique range of multifunctional insert to extend the range of application to Dry Block, Black Body Source or Zero Reference.
  • Special INFRARED BLACK BODY TARGET INSERTS for Calibration of Infrared Thermometers

PTB Series Portable Dry Block Temperature Calibrators

PTB series is the top of the range multifunction Dry Block Temperature Calibrators offered by EiUK- It comes in 3 different models to cover and extended range from -50°C (from ambient) to 1100°C.

PTB series is designed for both on-site maintenance and laboratory use and combines high portability with excellent temperature performance.

All PTB model are equipped with RS232 serial communication (USB converter available) and supplied with EiUK-CAL PC software

These are available in three different models over a range from -50 to 1100°C

Click to enlarge

PTB 150

from -50 to 150°C (from ambient)

PTB 600

from ambient to 600°C

PTB 1100

from 200 to 1100°C

The Salient features are:

  • High Accuracy Down to ±0.08°C (TC Version) using our external reference sensor and special calibration with built-in reference sensor input
  • Dual Channel Display (for TC Version) reads External Reference Sensor and unit under Test Simultaneously with high Stability ±0.03°C
  • Built-in Switch Test Calibration with automatic log of Open & Closed Temp. values
  • Wide range of Removable Multi hole inserts
  • Unique range of multifunctional insert to extend the range of application to Dry Block, Black Body Source or Zero Reference.
  • Special INFRARED BLACK BODY TARGET INSERTS for Calibration of Infrared Thermometers
  • Fast heating / cooling time and light weight

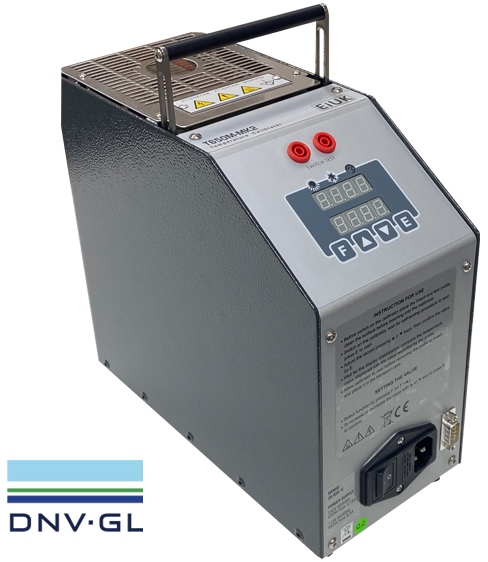

ETB Series Portable Dry Block Furnace / Calibrators

ETB series Dry Block Temperature Calibrators offered by EiUK comes in 3 different models to cover and extended range from -55°C (from ambient) to 1200°C.

ETB series is designed for both on-site maintenance and laboratory use and combines high portability with excellent temperature performance.

All ETB model have fast heating and cooling

These are available in three different models over a range from -55 to 1200°C

ETB 140

–55°C from ambient to 140 ºC

ETB 650

from 35°C to 650 ºC

ETB 1200

from 150°C to 1200°C

The Salient features are:

  • Use as dry block, stirred liquid bath (ETB 140), black body target and surface temperature calibrator
  • High Stability ± 0.025 ºC (ETB 140), ±0.03°C (ETB 650) and ±0.2°C (ETB 1200)
  • Wide range of Removable Multi hole inserts
  • Unique range of multifunctional insert to extend the range of application to Dry Block, Black Body Source or Zero Reference.
  • Special INFRARED BLACK BODY TARGET INSERTS for Calibration of Infrared Thermometers
  • Fast heating / cooling time

SRS Series Reference Probes for Temperature Calibration

All SRS thermometers are metal sheathed and less fragile of the traditional SPRT’s and therefore more suitable for industrial applications such as for use as working standards in Dry Blocks or Temperature Liquid baths.

SRS’s range of reference thermometers can be supplied together with our range of high accuracy digital thermometers and indicators, to make an ideal solution for use as Reference Standards during temperature calibration.

Optional UKAS calibration certificate is available to calibrate to the smallest uncertainties. Temperature Calibration points can be specified to suit operating ranges and applications.

Click to enlarge

The Salient features are:

  • Use of selected premium grade platinum element provides High Stability and Low Drift
  • Wide Temperature Ranges from -50 to 650 °C
  • Thermally treated to ensure long term stability and to minimise the risk of contamination when used at high temperatures.
  • Metal Sheath provides Less Fragility and cost effectiveness
