mtr pressure indicators and controllers

What we offer?

Budenberg Middle East offers MTR Precision Pressure Indicators and High speed Pressure Controllers with pressure range from -1 to 2000 bar.

All these units are available as stand alone units or with MTR Pressure Pumps / Comparators as described in “Pressure Comparators”. All the parts and products are manufactured in Germany.

Model TPMG2

Multi Channel High Precision Pressure Indicator

0.03, 0.8…1.2, (-1), 1, 3, 10, 30, 100, 300, 700, 1000, 2000 bar

Medium  Air / water

Applications

The TPMG2 is a high precision Pressure Indicator with features that make it ideal for Calibration laboratory and  production of Pressure Transducers, Pressure Gauges, Pressure Switches and other Pressure instruments.

TPMG2 is available for calibration of Pressure transducers, Switches and Gauges on both gas and liquid.

Specifications

  • Compact design and light weight
  • up to maximum 6 Internal sensors (External sensors as option) with sensor temperature indication

  • 7″ Colour Touch Screen up to 6 Digit resolution

  • Touch screen, Intuitive operator interface, external USB-Keyboard or mouse

  • Accuracy 0.025%FS standard, 0.01% FS optional, 15 to 45°C Temperature Compensated

  • Wide range of pressure units bar, mbar, psi, kg/cm2, mmHg, mH2O, mmH2O, “Hg, “H2O, Pa, kPa, MPa, hPa

  • Clean dry air medium like compressed air and nitrogen (external) <10bar and clean non-toxic Hydraulic liquids for high pressures

  • Sensor refresh rate <10 milli seconds

  • Sensor Temperature Indication
  • Barometer (optional)

  • G1/4 <700 bar and 9/16-18UNF >700 bar Pressure connection

  • USB PC Interface

  • 230VAC, 50Hz (32W) internal power supply

  • Ambient Conditions: 10 to 50°C storage Temp., < 95% Relative Humidity non-condensing

  • Aluminium Desktop Case, 250(L) x 250(D) x 150(H) mm, 3.9 kg

  • Supplied with Traceable Calibration certificate , Hose and Certificate of Conformity. Accredited DAkkS certificate is supplied if ordered separately

Click to enlarge

Scope of supply

Temperature Indicator TPMG2 with pressure sensor(s), Traceable Calibration Certificate, UKAS / DAkkS accredited Calibration is provided if ordered and Certificate of Conformity.

Optional Accessories

MTR HG104 Pressure Comparator
MZ2 / MZ5 Vacuum Pump
MTR SK70 300 bar compressor
Hoses, Adaptors, Gauge / Transmitter Stand and Dirt Trap
MTR-Cal Software
UKAS / DAkkS accredited Calibration is provided, if ordered separately.

Dimensions

250 x 250 x 150 mm ; 3.9 kg

Model LC6-P

High Speed Pneumatic Pressure Controllers

30, 100, 300 mbar, (-1), 1, 3, 10, 30, 70 bar Absolute / Gauge

Medium  Air

Applications

MTR offers High Speed Pressure controller / calibrator for Calibration of Pressure Instruments on gas up to 70 bar gauge or absolute. Higher ranges are also available on request.

Specifications

This highly reliable unit offers high precision, wide pressure ranges at very competitive price. With high control stability and intuitive operator interface, it offers very fast and economical solution in production and calibration laboratories.

  • Compact design and light weight
  • 7″ colour touch Screen up to 6 digit resolution
  • Touch screen, Intuitive operator interface, external USB-Keyboard or mouse
  • Accuracy 0.025%FS standard, 0.01% FS optional, 15 to 45°C temperature compensated
  • Wide range of pressure units bar, mbar, psi, kg/cm2, mmHg, mH2O, mmH2O, “Hg, “H2O, Pa, kPa, MPa, hPa
  • Clean dry air medium like compressed air and nitrogen (external)
  • Sensor refresh rate <10 milli seconds
  • Internal and external sensors with sensor temperature indication
  • Barometer and switch test (optional)
  • G1/4 (6/4 hose up to 10 bar, 6 mm swagelok > 10 bar) pressure connection
  • USB PC Interface
  • 230VAC, 50Hz (32W) internal power supply
  • Ambient Conditions: 10 to 50°C storage Temp., < 95% Relative Humidity non-condensing
  • Aluminium Desktop Case, 250(L) x 250(D) x 150(H) mm, 3.9 kg

Scope of supply

Temperature Indicator LC6-P with pressure sensor(s), hose, Traceable Calibration Certificate, UKAS / DAkkS accredited Calibration is provided if ordered and Certificate of Conformity.

Optional Accessories

MTR HG104 Pressure Comparator
MZ2 / MZ5 Vacuum Pump
MTR SK70 300 bar compressor
Hoses, Adaptors, Gauge / Transmitter Stand and Dirt Trap
MTR-Cal Software
UKAS / DAkkS accredited Calibration is provided, if ordered separately.

Dimensions

250 x 250 x 150 mm ; 3.9 kg

Portable Low Pressure Controller

Model LC4-H

Hydraulic High Pressure Controllers / Calibrators

0 to 690 bar, 0 to 1200 bar….4000 bar

Medium  Oil / Water

Applications

MTR offers High Speed Hydraulic Pressure controller / calibrator for Calibration of Pressure Instruments on oil or water up to 4000 bar . Higher ranges are also available on request.

The unit is designed especially for the calibration of pressure sensors and gauges in large quantities. The easy, manual operation and the extreme speed at which it reaches the required pressure value reduce the time of calibration to just a few seconds. The system generates hydraulic pressure in seconds.

Specifications

This highly reliable unit offers high precision, wide pressure ranges at very competitive price. With high control stability and intuitive operator interface, it offers very fast and economical solution in production and calibration laboratories.

The LC4-H series has been specially developed for service in a robust environment. The modular format makes this unit suitable for inclusion into almost any customized system. The use of advanced, latest materials, combined with ease of operation, makes the LC4-H particularly suitable for the harsher industrial environment.

The display accuracy is 0.025% (<=1000 bar); 0,05% >1000 bar + accuracy of the reference sensor. The key operational features are its ability to quickly and easily calibrate gauges and pressure sensors at the touch of a button and without complicated software menus or system set up.

Up to three independent pressure ranges can be integrated in the hand operated unit. Selection of the desired range is through the external control panel or the optional USB port.

Supplied as standard with MTR-Cal Software which calculates and displays permanently the deviation, Differential pressure between reference sensor and sensor under test (Analog output signals measured via Multimeter).

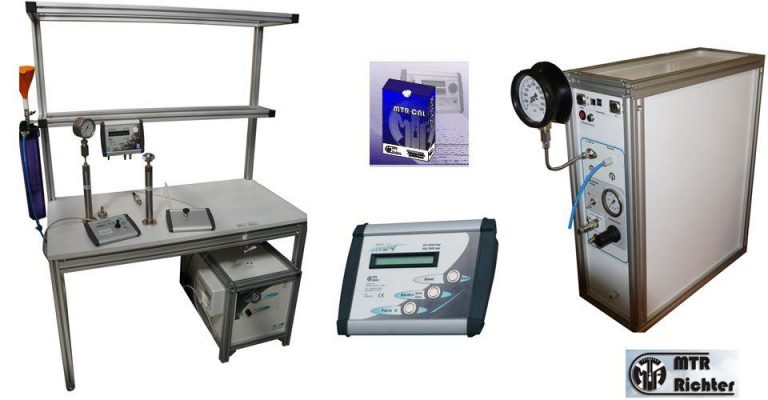

LC4-H, Click to enlarge

Scope of supply

The system includes Bench with Gauge stand for mounting Pressure Instruments under test / Calibration, MTR-Cal Software, Digital Pressure Gauge, Pressure Sensor(s), Traceable Calibration Certificate, UKAS / DAkkS accredited Calibration is provided if ordered and Certificate of Conformity.

Optional Accessories

MTR HG104 Pressure Comparator
Hoses, Adaptors, Gauge / Transmitter Stand and Dirt Trap
MTR-Cal Software
UKAS / DAkkS accredited Calibration is provided, if ordered separately.

Pressure Indicator MG4, Click to enlarge
